Voltage Regulation
Automatic Voltage Regulator, Tap Changer System
REG-D
19" plug-in module, surface-mounted and panel-mounted housing
- Various designs
- Regulation and control of transformers with on-load tap-changers
- IEC 61850, IEC 60870-5-101/103/104, Modbus, DNP 3.0
REG-DA
Wall mounting, panel mounting and DIN-rail mounting
- Metal housing
- 100mm mounting depth
- 2x Ethernet
- MQTT IoT support
Transformer Monitoring
Condition-based Power Transformer and OLTC monitoring
TrafoStick TS4x
ONLINE Breakdown Voltage (BDV) Measurement – BDV Oil-Stick
- Housing: EN-AW-6063 (aluminium)
- BDV @20°C measurement accuracy: 1–5%
- Water content (ppm) accuracy: 2.0%
- Temperature (°C) accuracy: 0.1%
- ONLINE, continuous condition monitoring of transformer oil
TrafoStick TS5x
ONLINE BDV + Dissolved Gas Measurement (H₂ & CO)
- Housing: EN-AW-6063 (aluminium)
- All TS4x measurements included
- Additional: Hydrogen (H₂) dissolved gas measurement
- Additional: Carbon Monoxide (CO) dissolved gas measurement
- Paradigm shift: from manual sampling to ONLINE measurement
Low Voltage Regulation
Dynamic Voltage Regulator, Line Drop Compensation, Voltage Stabilization

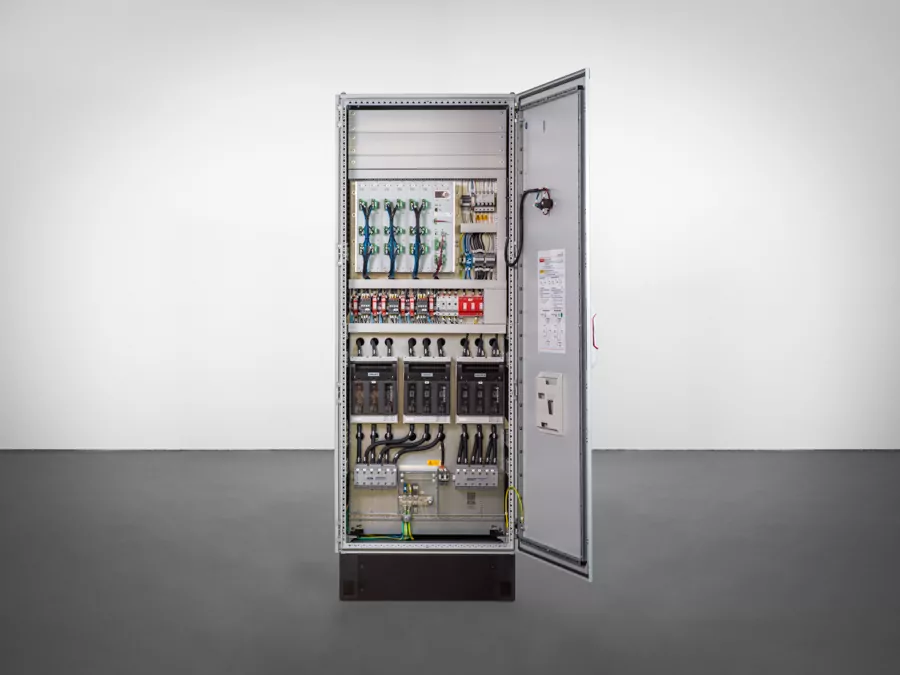

LVRSys Indoor
Indoor Low Voltage Regulator
- < 30 ms response time
- No grid interference
- Highly efficient > 99.5%
- Easy installation as cable distribution cabinet
- -40°C to +50°C operating temperature
LVRSys Outdoor
Outdoor Low Voltage Regulator
- Overload capable like NH fuse
- High resistance to over voltages
- Intuitive operating concept
- Adjustable response time 30 ms to 100 s
Short-Circuit & Earth Fault Indicators
Fault Detection, Earth Fault Locator, Short Circuit Analysis
EOR-1DS
Earth-Fault and Short-Circuit Indicator
- Incl. Rogowski Coil Sensors
- Compatible with low power sensors
- Fault Recorder and Logbook
- Modbus RTU
EOR-3DS
For intelligent sub-stations
- Panel/DIN rail mounting
- 2x Ethernet
- IEC 61850 GOOSE
- Long-life Capacitor for >4h operation
- Additional intelligent functions via free programmability
I-Sense 3 & 4
Low Power Sensors
- Compatible with EOR indicators
- Low power consumption
- Compact design
Mobile Power Quality Analysers
Portable power quality measurement and analysis tools
PQ-Box 50
Basic Mobile Power Quality Analyser
- 1 GB data memory
- IP65 protection
- 20.48 kHz sampling frequency
- WiFi connectivity
PQ-Box 150
Light to Expert Mobile Power Quality
- 4 (32) GB memory
- 4.5" display
- 24-bit resolution
- 4h bridging energy
PQ-Box 200
Expert Mobile Power Quality Analyser
- 40.96 kHz / 4 MHz transient
- 5 current inputs (24-bit)
- RCM & FCM (accessories)
- Temperature input PT100/PT1000
PQ-Box 300
Premium Mobile Power Quality Analyser
- 409.60 kHz sampling
- 8 (32) GB memory
- 170 kHz harmonics
- 4.5" display
Fixed Power Quality Systems
Power Quality Loggers, Fault Recorders & Network Monitors
PQI-DA Smart
Fixed Power Quality Analyser
- 1 (32) GB memory
- 40.96 kHz / 40 kHz sampling
- IP20 protection
- 1.7" display
- 2/2 Digital I/O
PQI-DE
Fixed Power Quality System
- 1 (32) GB memory
- Up to 40.96 kHz sampling
- IP54 protection
- 5.0" display
- 8/4 Digital I/O
- RCM & FCM support
